Copper Wire Granulator

Copper Wire Granulator is specialized recycling equipment designed to separate copper metal from waste cables, wires and electrical wiring.

Inqurie

Product Overview

Copper Wire Granulator is specialized recycling equipment designed to separate copper metal from waste cables, wires and electrical wiring. It effectively processes scrap automobile wires, household waste wires, communication cables, electric motor wires and various mixed insulated cables.
As one of the core recycling equipment supplied by SENKOTH, our copper wire granulator adopts dry physical separation technology, no water, no chemical pollution. Supported by our direct factory partnerships, we provide complete granulation solutions with stable performance, competitive price and comprehensive after-sales service for metal recycling factories and waste resource processors worldwide.

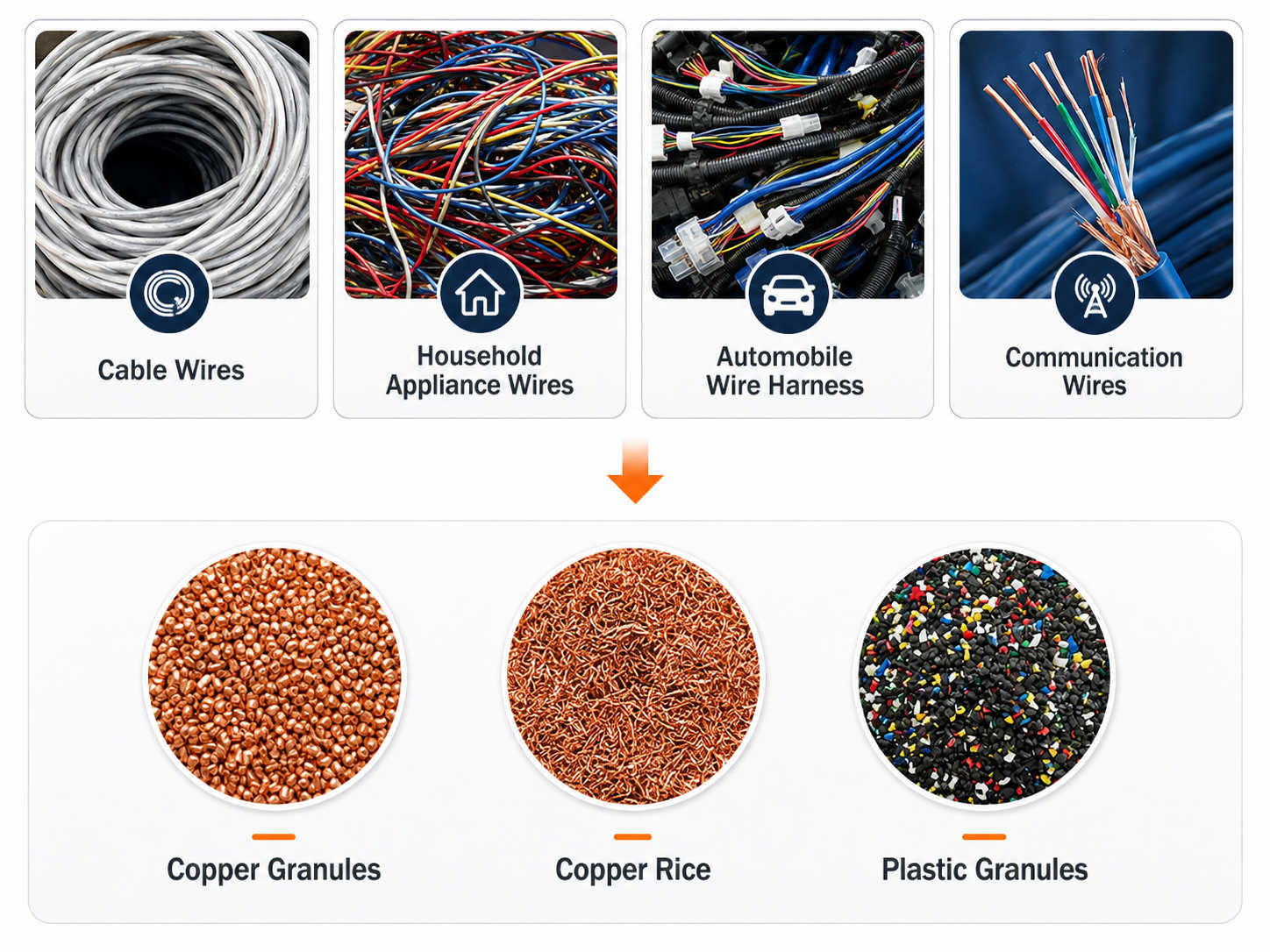

Raw Materials & Final Outputs

Raw Materials (Input):

Scrap automotive wiring, household waste electric wires, communication cables, copper cables, waste motor leads, electrical equipment dismantling wires and other insulated copper wires.

Finished Products (Output):
  1. Copper Granules: High-purity copper particles, directly available for smelting and resale
  2. Plastic Flakes: Separated plastic insulation materials, can be recycled separately



Key Features & Advantages

  • High Copper Recovery Rate: Advanced crushing and air separation system achieves high-purity copper granules, significantly improving economic benefits.
  • Dry Separation Technology: Entire dry processing without water, saving water resources and avoiding secondary pollution.
  • Low Energy Consumption & Stable Operation: Optimized mechanical structure, low noise, stable continuous running, suitable for long-term industrial work.
  • Wide Material Adaptability: Handles various thin wires, thick cables, mixed wires; multiple models available for different hourly capacity requirements.
  • Easy Installation & Maintenance: Compact layout, simple operation, convenient access for daily inspection and spare parts replacement.
  • Customizable Solutions: We can match supporting dust removal equipment and configure production lines according to customers’ raw materials and output demands.

Working Principle

Raw waste cables go through feeding, coarse crushing, fine shredding to separate copper and plastic skins. The mixture enters air separation system to realize automatic sorting of copper granules and plastic insulation. Customers can directly sell high-purity copper particles for remelting and reuse.

Technical Parameters

Item Specification
Processing Method Dry physical air separation
Processing Wire Diameter 0.5–20 mm
Copper Recovery Rate ≥99%
Copper Purity of Output Granules ≥99.5%
Available Models Mini type / Medium type / Industrial large-scale line
Hourly Capacity Range 60kg/h – 800kg/h (optional according to model)
Voltage Standard 380V/50Hz (Customizable for different countries)
Optional Configuration Pulse dust collector, electrostatic separator, conveyor

SENKOTH Advantage

Different from ordinary trading companies, we cooperate directly with manufacturers. Strict factory inspection before shipment, stable quality control, competitive ex-factory price, fast spare parts supply and professional remote technical guidance to solve on-site operation problems for global clients.
Contact us to get model parameters, layout plan and customized recycling line solutions.
