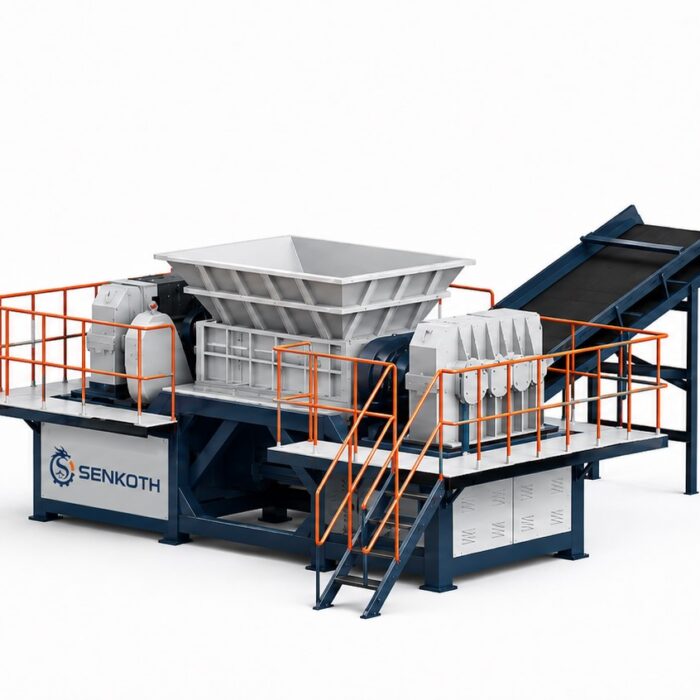

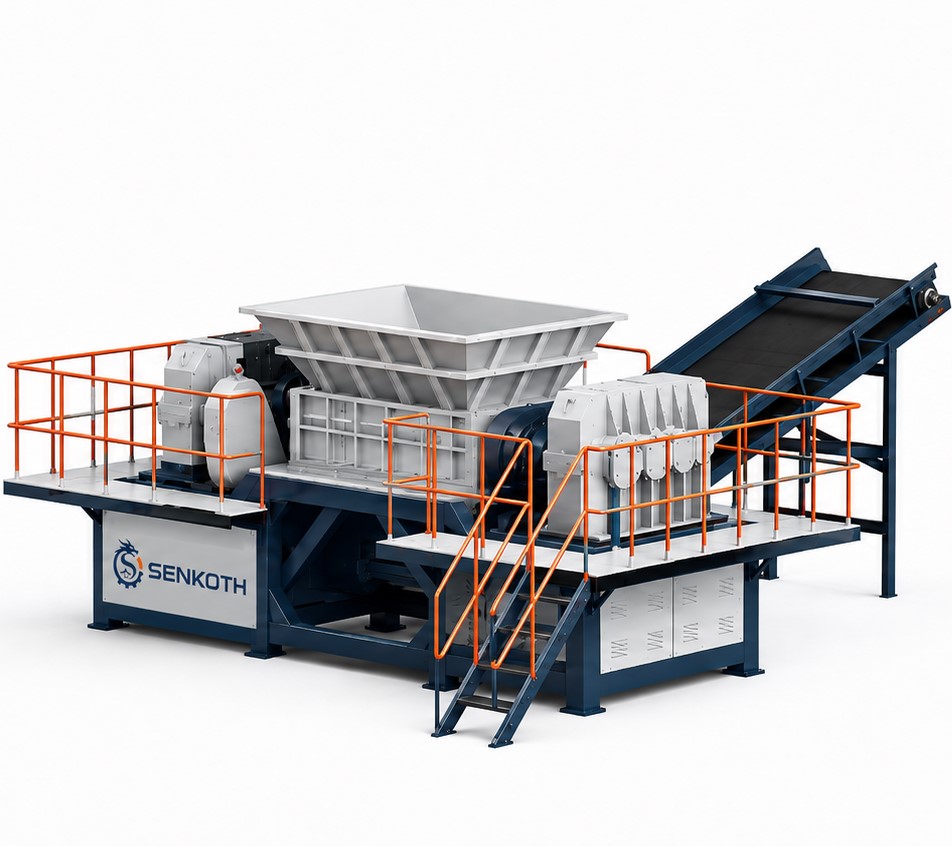

Double Shaft Plastic Shredder

Double Shaft Plastic Shredder is a heavy-duty, low-speed and high-torque industrial shredding machine. It is specially developed for volume reduction and primary crushing of various waste plastic materials.

Product Overview

Double Shaft Plastic Shredder is a heavy-duty, low-speed and high-torque industrial shredding machine. It is specially developed for volume reduction and primary crushing of various waste plastic materials. As essential front-end recycling equipment, this plastic shredder efficiently processes bulky, irregular and tough plastic waste into uniform fragments, making materials ready for further washing, granulating and recycling treatment.
Supported by SENKOTH’s direct factory cooperation resources, our plastic shredder features solid structure, stable running performance and low failure rate, providing global clients with cost-effective and reliable plastic recycling solutions.

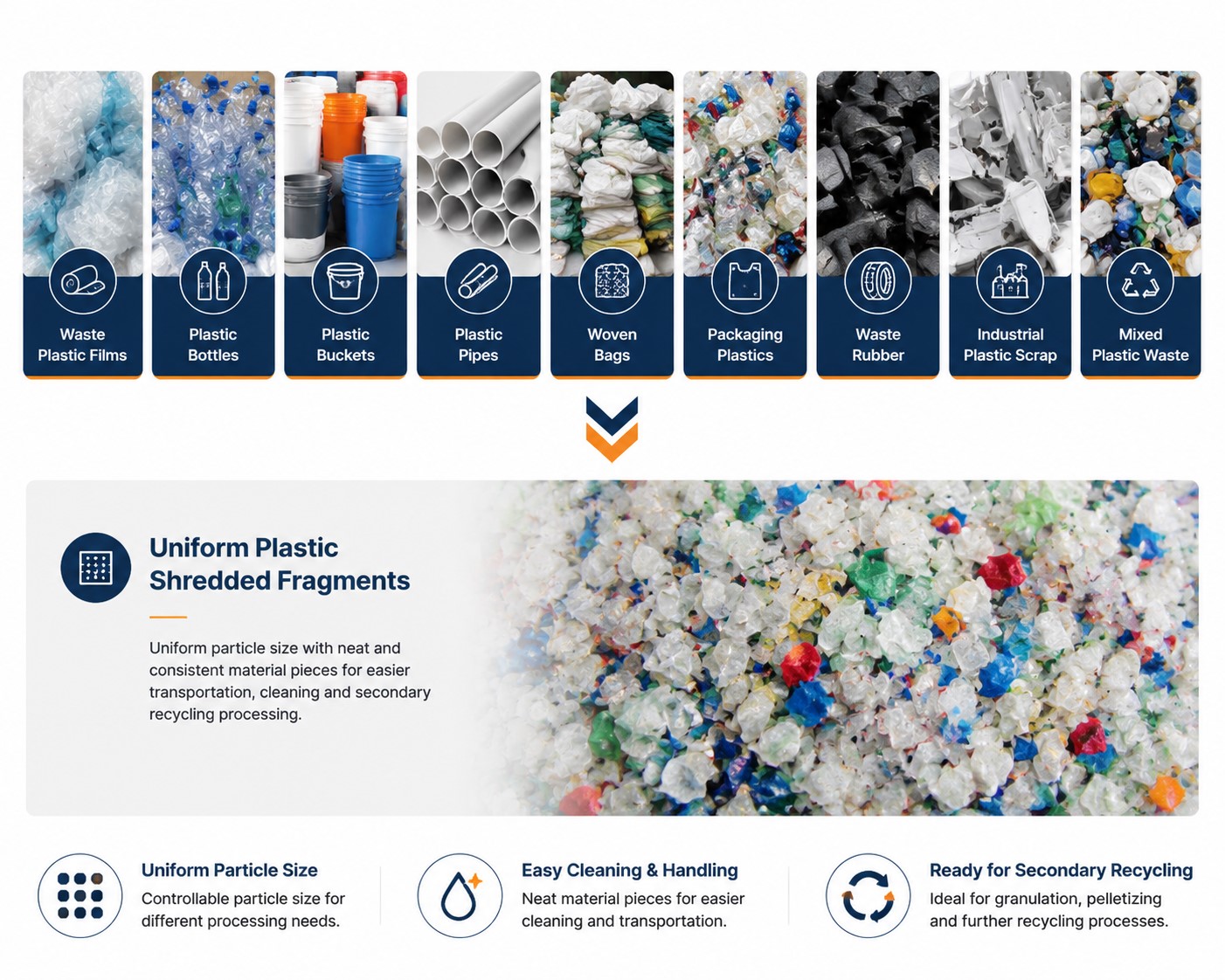

Raw Materials & Final Outputs

Raw Materials (Input):

Waste plastic films, plastic bottles, plastic buckets, plastic pipes, woven bags, packaging plastics, waste rubber materials, leftover industrial plastic and various mixed plastic scrap.
Finished Products (Output):
Uniform plastic shredded fragments with controllable particle size. Neat and consistent material pieces for easier transportation, cleaning and secondary recycling processing.

Key Features & Advantages

  • Strong Shearing & Crushing Capacity: Low-speed high-torque double-shaft design easily handles thick, tough and bulky plastics without jamming.
  • Intelligent Anti-Jam Protection: Equipped with PLC automatic control system with overload protection and reverse rotation function, ensuring continuous stable production.
  • High Wear-Resistant Blades: Adopts high-strength alloy blades through professional heat treatment, featuring strong wear resistance and long service life.
  • Low Noise & Energy Saving: Gentle shear-type shredding method, low vibration, low noise and lower power consumption compared with traditional crushing equipment.
  • Wide Material Compatibility: Suitable for almost all common waste plastics and rubber materials, ideal for versatile plastic recycling plants.
  • Durable Industrial Structure: Thickened steel body and reinforced driving system, fully adapted to long-time continuous industrial operation.

Working Principle

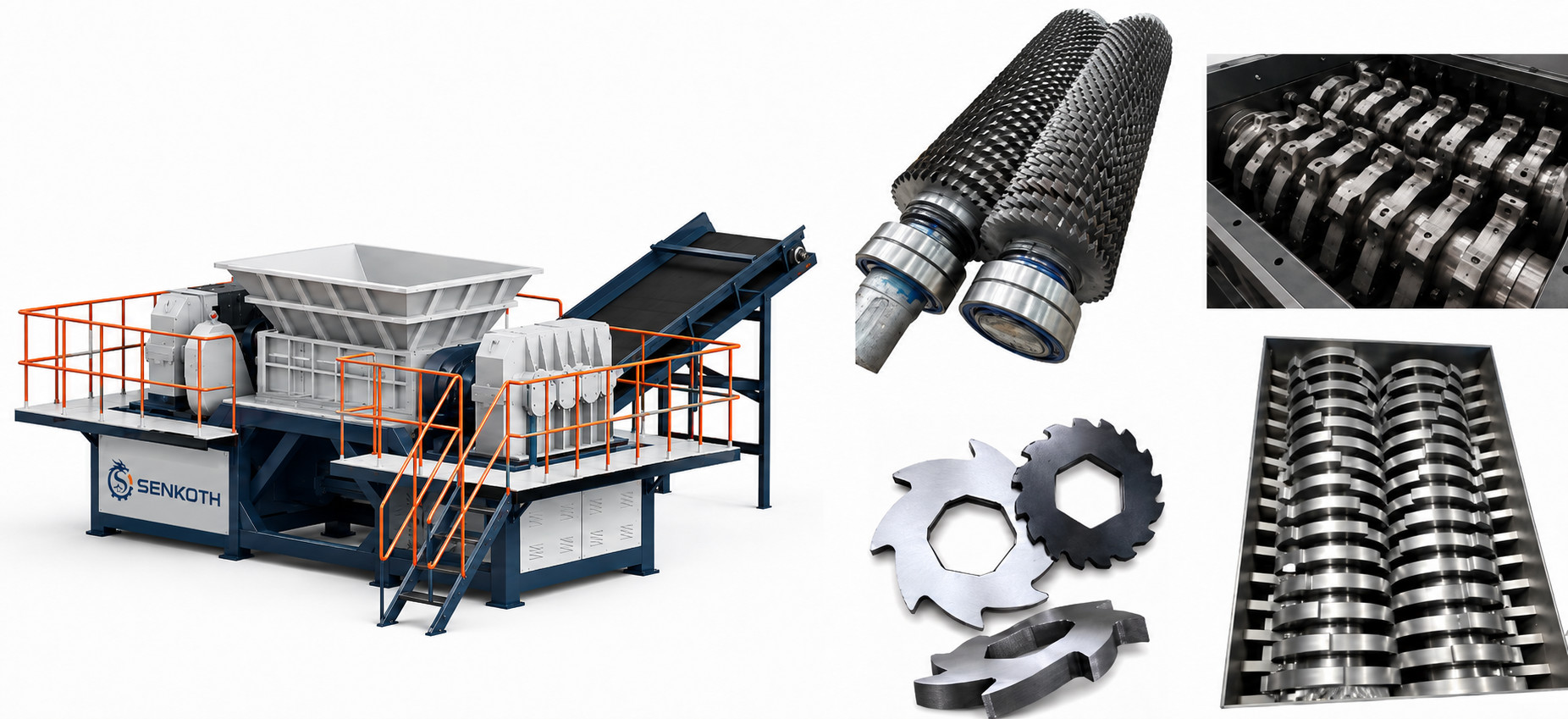

Two cutter shafts rotate in opposite directions at low speed. The machine uses mechanical shearing, squeezing and tearing force to cut and shred large and whole plastic waste into even small fragments. It effectively reduces material volume, removes messy stacking status, and greatly improves the efficiency of downstream plastic recycling procedures.

Technical Parameters

Model Number Processing Capacity(t/h) Motor Power (kw) Feeding Size (mm) Equipment Weight (t) Output Size (mm)
SENKOTH‑DSSM‑600 1‑2 2*22 600*400 6.5 10‑150
SENKOTH‑DSSM‑800 2‑5 2*37 800*600 9.5 15‑180
SENKOTH‑DSSM‑1000 3‑8 2*45 1000*700 12.5 20‑200
SENKOTH‑DSSM‑1200 5‑12 2*55 1200*800 16.8 20‑250
SENKOTH‑DSSM‑1400 8‑12 2*75 1400*1000 23.5 30‑300
SENKOTH‑DSSM‑1800 12‑13 2*110 1800*1200 35 30‑400
SENKOTH‑DSSM‑2000 13‑14 2*132 2000*1400 45 40‑500

SENKOTH Advantage

Different from ordinary trading companies, we maintain direct production cooperation with professional manufacturers. All equipment is strictly inspected before shipment. We deliver stable quality, factory direct pricing, fast spare parts supply and reliable remote technical after-sales service for global business partners.
Contact us for model selection, production line layout and customized plastic recycling solutions.
