Plastic Crushing, Sorting & Pulverizing Line

Product Overview

Plastic Crushing, Sorting & Pulverizing Line is an integrated automatic recycling system for waste plastic processing. It combines shredding, crushing, impurity separation and fine pulverizing into one complete workflow. According to different raw‑material conditions, materials can go through full multi‑stage processing or skip certain procedures directly for fine grinding.

This production line is compatible with rigid plastics, PVC profiles, plastic lumps, injection sprues, mixed waste plastics and other materials. It is perfectly matched with SENKOTH double‑shaft shredder, general plastic crusher, magnetic separator, air separator and plastic pulverizer. We provide modular turn‑key solutions for plastic recyclers, delivering clean plastic flakes and fine plastic powder for downstream reuse.

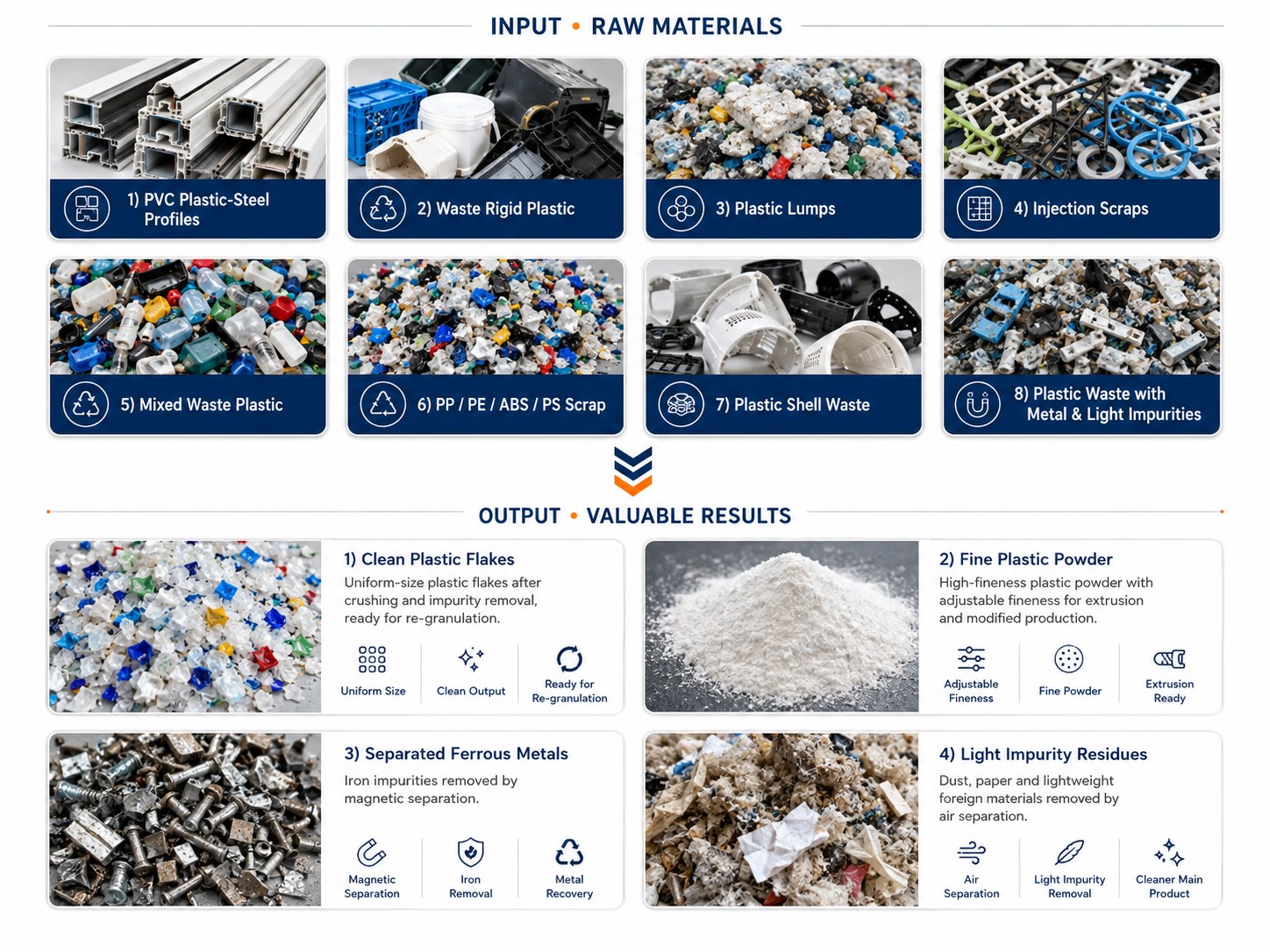

Raw Materials & Final Outputs

Raw Materials (Input): PVC plastic‑steel profiles, waste rigid plastic, plastic lumps, injection scraps, mixed waste plastic, PP/PE/ABS/PS scrap, plastic shell waste and other mixed plastic waste containing metal and light impurities.

Finished Products (Output):

• Clean Plastic Flakes: Uniform‑size plastic fragments after crushing and impurity removal, ready for re‑granulation
• Fine Plastic Powder: High‑fineness plastic powder, adjustable fineness for extrusion and modified production
• Separated Ferrous Metals: Iron impurities filtered out by magnetic separation
• Light Impurity Residues: Dust, paper and lightweight foreign matters removed by air separation

Key Features & Advantages

• Flexible Modular Configuration: Partial units can be bypassed. Large‑volume bulky plastics go through shredding‑crushing‑pulverizing; clean pre‑broken materials can directly enter pulverizer for fine grinding.
• Multi‑stage Impurity Removal: Magnetic separation removes iron contaminants, air separation eliminates dust and light debris, improving the purity of final plastic products.
• Adjustable Output Size: Flake particle size controlled by crusher screen; powder fineness adjustable via pulverizer grinding discs to meet diverse downstream requirements.
• Closed Dust‑removal Design: Equipped with pulse dust collector to suppress flying dust, improving workshop environment and complying with environmental‑protection regulations.
• Stable Wear‑resistant Components: Heavy‑duty rotors and high‑quality tool steel blades extend service life, reducing maintenance frequency.
• PLC Centralized Control: Automatic continuous feeding, processing and material collection; lower labor cost and easy operation.
• Wide Material Compatibility: Handles multiple types of rigid industrial waste plastics, widely adopted in plastic recycling and plastic reprocessing factories.

Working Principle

Waste plastics are conveyed into double‑shaft shredder for primary coarse shredding if bulky. After coarse shredding, materials enter general plastic crusher for secondary crushing into plastic flakes.

Magnetic separator removes iron impurities, while air separator blows away dust and light mixed waste. Materials can be discharged as finished flakes at this stage. If fine powder is required, flakes are further fed into plastic pulverizer for high‑speed grinding. Qualified fine powder passes through screen and is collected by cyclone system; unqualified material circulates back for re‑grinding.

Whole production line runs under closed negative‑pressure dust collection to avoid material leakage and dust pollution.

Technical Parameters

SENKOTH Advantage

As we maintain direct cooperation with manufacturing factories, SENKOTH supplies complete modular plastic crushing‑sorting‑pulverizing lines, including process layout, equipment matching, installation guidance and global after‑sales support.

All core machines undergo strict factory inspection. Flexible configuration helps customers avoid redundant investment, achieving high‑purity plastic flakes and powder with stable running performance.

Contact us for customized layout solution and detailed quotation.
