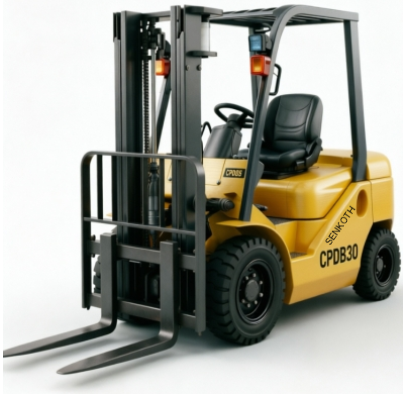

SENKOTH CPDB30 3 Ton Max Load Explosion-Proof Lithium Counterbalance Forklift

SENKOTH CPDB30 3 Ton Max Load Explosion-Proof Lithium Counterbalance Forklift

CPDB30｜3.0 Ton Max Load Explosion-Proof Forklift: Heavy-duty integrated explosion-proof frame with multiple safety protection functions. Designed for large chemical storage yards and flammable powder bulk processing plants.

Inqurie

Product Introduction

CPDB30 is the maximum load model of explosion-proof lithium series, rated load up to 3000kg. Ultra-reinforced explosion-proof mast, chassis and counterweight design for heavy cargo stacking in hazardous gas & dust zones. All electrical components pass strict explosion-proof testing, fully compliant with international hazardous area safety standards. Fast charging explosion-proof lithium battery reduces production downtime for continuous hazardous workshop operation.

Core Product Highlights

  1. 3-ton maximum load explosion-proof forklift with heavy-duty explosion-proof integrated frame
  2. Full set of international standard explosion-proof certification for gas & dust dangerous zones
  3. Complete sealed explosion-proof lithium battery pack with anti-leakage, anti-spark, anti-explosion functions
  4. Anti-static oversized solid tires effectively release static electricity to avoid ignition risk
  5. Built-in multiple safety speed limit & overload protection for hazardous environment operation

Standard Explosion-Proof Configuration

  • Explosion-proof sealed lithium iron phosphate battery 80V 270Ah
  • Full explosion-proof AC drive motor, explosion-proof controller & wiring harness
  • Explosion-proof LED lighting, explosion-proof horn, sealed explosion-proof dashboard
  • Reinforced explosion-proof mast assembly, solid anti-static tires
  • Complete explosion-proof safety interlock protection system

Technical Parameter Table

Item Specification
Model CPDB30
Power Type Explosion-Proof Lithium Iron Phosphate Battery
Rated Load Capacity 3000kg
Load Center Distance 500mm
Standard Mast Lifting Height 3000mm
Minimum Turning Radius 2400mm
Max Travel Speed (Loaded / Unloaded) 12km/h / 14km/h
Max Lifting Speed (Loaded) 260mm/s
Max Gradeability (Loaded) 15%
Battery Voltage / Capacity 80V / 270Ah
Fast Charge Time (20%-100%) ≤1.5 hours
Gas Explosion-Proof Mark Ex db eb ib mb IIB T4 Gb
Dust Explosion-Proof Mark Ex tb IIIC T135°C Db
Applicable Gas Hazardous Zone Zone 1, Zone 2
Applicable Dust Hazardous Zone Zone 21, Zone 22
Total Self Weight (with battery) ~5000kg

Application Scenarios

Large chemical storage yards, bulk flammable powder processing plants, large pharmaceutical raw material warehouses, coating production heavy-duty workshops.

Service Promise

Complete explosion-proof certification file package for export customs, long-term spare parts supply contract available for large chemical enterprise clients.

Customization & Delivery

Custom explosion-proof mast height, cabin and attachments available. Standard lead time 10-20 working days, full explosion-proof certificates provided for export.
