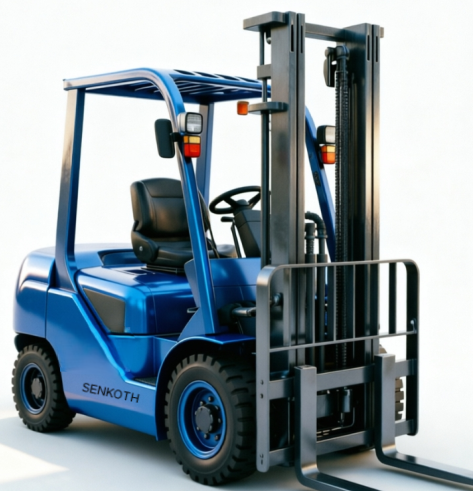

SENKOTH CPD45H 4.5 Ton High-Voltage Heavy-Duty Lithium Forklift

SENKOTH CPD45H 4.5 Ton High-Voltage Heavy-Duty Lithium Forklift

CPD45H｜4.5 Ton 309V High-Voltage Heavy-Duty Forklift: High-torque high-voltage motor with outstanding full-load climbing performance, suitable for factories with frequent ramp transportation and heavy raw material storage scenarios.

Inqurie

Product Introduction

CPD45H high-voltage forklift reaches 4500kg rated load, 309V high energy density lithium system provides continuous stable power for long-hour heavy cargo handling. High torque high-voltage motor delivers strong climbing performance, ideal for factories with frequent ramp transportation. Modular high-voltage components simplify maintenance and fault diagnosis.

Core Product Highlights

  1. 5-ton heavy load capacity with 309V high-efficiency lithium power system
  2. High torque high-voltage motor with excellent ramp climbing performance under full load
  3. Optional 420Ah super large battery pack for 12-hour non-stop shift work
  4. Real-time high-voltage insulation monitoring system eliminates electric safety risks
  5. Reinforced mast structure for stable high-position stacking of heavy goods

Standard & Optional Configurations

Standard Configuration

  • 309V high-voltage lithium pack, dedicated high-voltage intelligent charger
  • 3m reinforced mast, heavy-duty forks, solid elastic tires
  • Full digital high-voltage dashboard, LED lighting system

Optional Configuration

  • Closed cabin, dual joystick fingertip control, integral side shifter
  • Wet disc brake system, reversing voice alarm, blue safety lamp, fire extinguisher

Technical Parameter Table

Item Specification
Model CPD45H
Drive Type High-Voltage AC Electric Drive
Operation Type Seat-type
Rated Load Capacity 4500kg
Load Center Distance 550mm
Total Service Weight (with battery) 6750-7030kg
Tire Type Solid Elastic Tire
Mast Height (Fully Lowered) 2350mm
Free Lift Height 130-150mm
Standard Mast Lifting Height 3000mm
Overhead Guard Height 2360mm
Overall Length 3990mm
Overall Length (Without Forks) 2920mm
Overall Width 1516mm
Fork Size (Thickness/Width/Length) 55/150/1070mm
Min Ground Clearance (Mast) 150mm
Min Ground Clearance (Frame) 160mm
Minimum Turning Radius 2600mm
Travel Speed (Loaded / Unloaded) 18km/h / 18km/h
Lifting Speed (Loaded / Unloaded) 350mm/s / 450mm/s
Lowering Speed (Loaded / Unloaded) 500mm/s / 400-420mm/s
Max Gradeability (Loaded / Unloaded) 15% / 20%

Application Scenarios

Heavy raw material storage, large manufacturing factory internal logistics, port auxiliary cargo handling yards.

Service Promise

3-year high-voltage battery warranty, professional remote fault diagnosis service.

Customization & Delivery

Custom mast height, fork length and attachments available. Standard lead time 7-15 working days, CE & ISO certified for global export.
