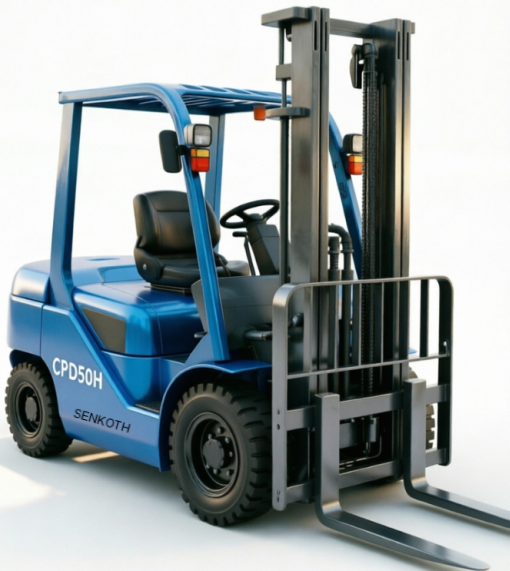

SENKOTH CPD50H 5 Ton Top Load High-Voltage Lithium Electric Forklift

SENKOTH CPD50H 5 Ton Top Load High-Voltage Lithium Electric Forklift

CPD50H｜5.0 Ton 309V Top High-Voltage Lithium Forklift: Flagship high-voltage model with standard 420Ah super-large battery, supporting full-day 5-ton continuous heavy-duty operation. Applicable to large steel yards and heavy equipment manufacturing bases.

Inqurie

Product Introduction

CPD50H is the flagship model of high-voltage series, maximum rated load 5000kg with 309V high-density lithium battery system. Equipped with 420Ah super large capacity battery as standard option, supports full-day 5-ton heavy load continuous operation. High voltage platform reduces energy consumption and charging time to greatly improve overall warehouse operation efficiency.

Core Product Highlights

  1. 5-ton maximum heavy load flagship high-voltage power platform
  2. Standard optional 420Ah large capacity lithium battery for ultra-long endurance
  3. High efficiency high-voltage motor saves 20% energy compared with standard 80V 5-ton model
  4. Complete high-voltage safety protection: insulation detection, overvoltage, overcurrent protection
  5. Oversized counterweight & heavy-duty tires prevent tipping during high stacking

Standard & Optional Configurations

Standard Configuration

  • 309V high-voltage lithium pack, dedicated high-voltage intelligent charger
  • 3m reinforced mast, heavy-duty forks, solid elastic tires
  • Full digital high-voltage dashboard, LED lighting system

Optional Configuration

  • Closed cabin, dual joystick fingertip control, integral side shifter
  • Wet disc brake system, reversing voice alarm, blue safety lamp, fire extinguisher

Technical Parameter Table

Item Specification
Model CPD50H
Drive Type High-Voltage AC Electric Drive
Operation Type Seat-type
Rated Load Capacity 5000kg
Load Center Distance 500mm
Total Service Weight (with battery) 7200-7350kg
Tire Type Solid Elastic Tire
Mast Height (Fully Lowered) 2350mm
Free Lift Height 130-150mm
Standard Mast Lifting Height 3000mm
Overhead Guard Height 2360mm
Overall Length 3990mm
Overall Length (Without Forks) 2920mm
Overall Width 1516mm
Fork Size (Thickness/Width/Length) 55/150/1070mm
Min Ground Clearance (Mast) 150mm
Min Ground Clearance (Frame) 160mm
Minimum Turning Radius 2600mm
Travel Speed (Loaded / Unloaded) 18km/h / 18km/h
Lifting Speed (Loaded / Unloaded) 350mm/s / 450mm/s
Lowering Speed (Loaded / Unloaded) 500mm/s / 400-420mm/s
Max Gradeability (Loaded / Unloaded) 15% / 20%

Application Scenarios

Large steel storage yards, heavy equipment manufacturing plants, large port cargo transfer warehouses.

Service Promise

Exclusive high-voltage maintenance training for bulk order clients, global spare parts fast delivery.

Customization & Delivery

Custom mast height, fork length and attachments available. Standard lead time 7-15 working days, CE & ISO certified for global export.
