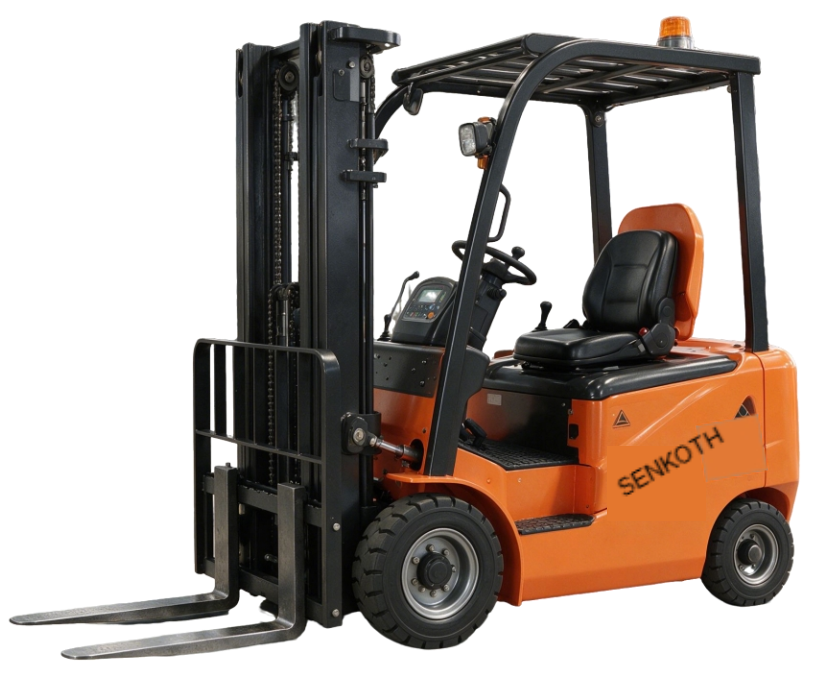

CPD25｜2.5Ton Medium & Heavy-Duty Lithium Forklift: Reinforced mast and chassis with improved bearing capacity. Suitable for medium-sized logistics transportation in building materials, textile and mechanical parts warehouses.
Product Introduction
CPD25 upgrades load capacity to 2500kg, perfect for medium-heavy cargo stacking. Reinforced mast and chassis structure improves bearing strength. 80V 230Ah lithium battery delivers stable power output during heavy load lifting. Medium turning radius balances flexibility and load stability, suitable for both warehouse and outdoor flat yard work.
Core Product Highlights
Standard Configuration
Optional Configuration
Technical Parameter Table
| Item | Specification |
| Model | CPD25 |
| Drive Type | Electric AC Drive |
| Operation Type | Seat-type |
| Rated Load Capacity | 2500kg |
| Load Center Distance | 500mm |
| Total Service Weight (with battery) | 4220kg |
| Tire Type | Solid Elastic Tire |
| Minimum Turning Radius | 2020mm |
| Overall Width | 1220mm |
| Fork Size (Thickness/Width/Length) | 40/100/1070mm |
| Travel Speed (Loaded / Unloaded) | 15km/h / 15km/h |
| Lifting Speed (Loaded / Unloaded) | 420mm/s / 450mm/s |
| Lowering Speed (Loaded / Unloaded) | 500mm/s / 400mm/s |
| Max Gradeability (Loaded / Unloaded) | 15% / 15% |
Application Scenarios
Machinery parts warehouses, building materials storage, beverage factories, textile mills, medium-load logistics transfer yards.
Service Promise
3-year motor warranty, customizable mast height 3m–6m, export CE certification standard.
Customization & Delivery
Custom mast height, fork length and attachments available. Standard lead time 7-15 working days, CE & ISO certified for global export.
