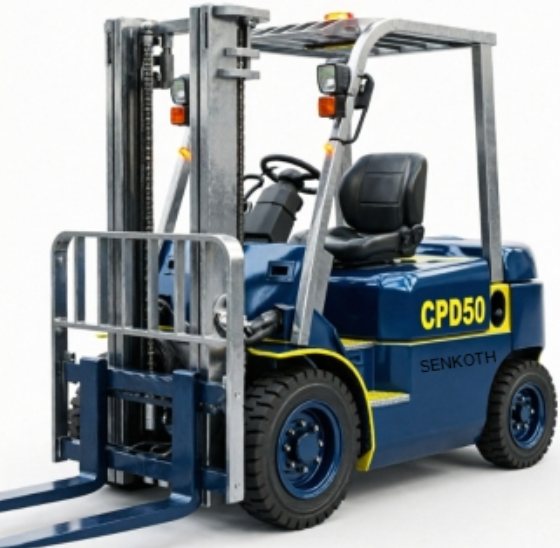

SENKOTH CPD50 5 Ton Max Load Standard Lithium Counterbalance Forklift

SENKOTH CPD50 5 Ton Max Load Standard Lithium Counterbalance Forklift

CPD50｜5.0Ton Max Load Standard Lithium Forklift: Top-level load capacity of the 80V standard series, industrial-grade heavy-duty structure. Perfect for heavy-load handling in large steel warehouses, heavy machinery manufacturing and port auxiliary transportation.

Inqurie

Product Introduction

CPD50 is the top load capacity model of standard 80V lithium series, rated load up to 5000kg. Adopts ultra-heavy integrated counterweight, thickened reinforced mast and high-torque AC drive motor, perfectly matching full 5-ton heavy cargo handling demands. Large capacity lithium battery supports all-day heavy-duty operation without frequent charging.

Core Product Highlights

  1. 5-ton maximum standard load capacity, heavy industrial grade structure
  2. Super high torque traction motor for stable lifting & driving under full load
  3. Oversized solid tires with strong ground bearing capacity for outdoor yards
  4. Complete intelligent safety protection system for heavy load operation
  5. Modular component design for easy disassembly and maintenance

Standard & Optional Configurations

Standard Configuration

  • 80V 280Ah lithium battery, 100A intelligent fast charger
  • Reinforced 3m two-stage mast, 55mm thick heavy-duty forks
  • Large-size digital display, wide overhead guard, LED lighting system
  • Extra-wide solid anti-wear tires, high-strength load backrest

Optional Configuration

  • 200A super fast charger, dual joystick fingertip control
  • Closed full cabin with windshield & wiper, wet disc brake system
  • Side shifter, reversing voice alarm, blue warning light, fire extinguisher

Technical Parameter Table

Item Specification
Model CPD50
Drive Type Electric AC Drive
Operation Type Seat-type
Rated Load Capacity 5000kg
Load Center Distance 500mm
Total Service Weight (with battery) 7350kg
Tire Type Solid Elastic Tire
Mast Height (Fully Lowered) 2350mm
Free Lift Height 130mm
Standard Mast Lifting Height 3000mm
Overhead Guard Height 2360mm
Overall Length 3990mm
Overall Length (Without Forks) 2920mm
Overall Width 1516mm
Fork Size (Thickness/Width/Length) 55/125/1070mm
Min Ground Clearance (Mast) 150mm
Min Ground Clearance (Frame) 160mm
Minimum Turning Radius 2600mm
Travel Speed (Loaded / Unloaded) 18km/h / 18km/h
Lifting Speed (Loaded / Unloaded) 350mm/s / 450mm/s
Lowering Speed (Loaded / Unloaded) 500mm/s / 400mm/s
Max Gradeability (Loaded / Unloaded) 15% / 20%

Application Scenarios

Large steel warehouses, heavy machinery manufacturing, port container auxiliary handling, mineral raw material storage yards.

Service Promise

2-year full machine warranty, on-site maintenance service support for overseas bulk orders.

Customization & Delivery

Custom mast height, fork length and attachments available. Standard lead time 7-15 working days, CE & ISO certified for global export.
